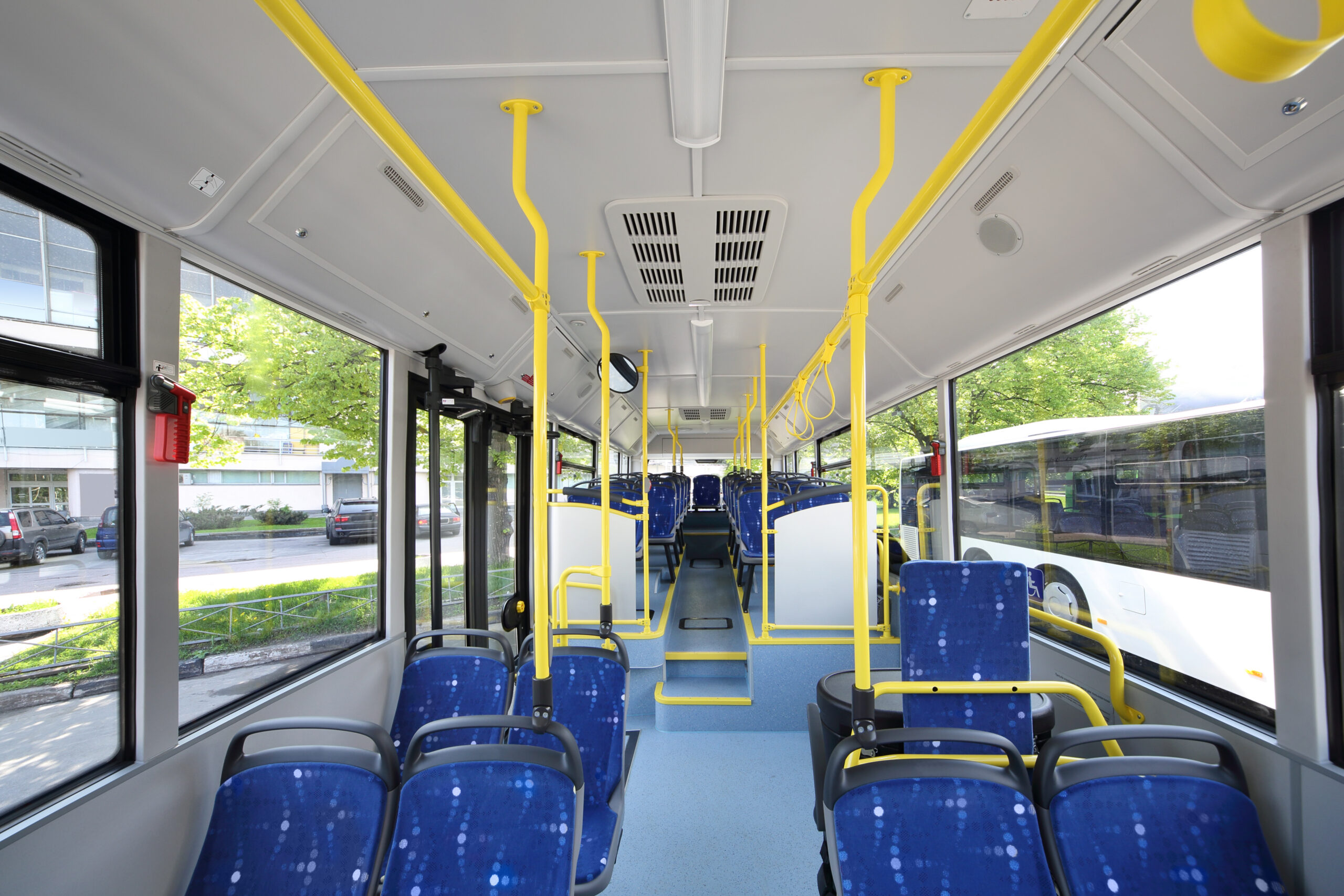

Transit windows take abuse that no other glazing category has to absorb in the same combination. Impact from thrown objects, deliberate scratching, graffiti and the solvents used to remove it, daily cleaning with abrasive compounds, and continuous UV exposure across decades of fleet service — all of it concentrated on the same panel. The result is a maintenance and replacement cost that most transit agencies have accepted as a fixed operational expense.
The question worth asking is whether it has to be.
The materials and testing data that govern transit glazing have matured to the point where polycarbonate, specified and coated correctly, addresses all of the failure modes that drive window replacement cycles for glass. The standards bodies have done the work. The data exists. This post covers what it shows.
What Vandalism Actually Does to a Transit Window
The word “vandalism” covers several distinct failure mechanisms, each of which behaves differently in the material and requires a different engineering response.
Impact Damage
Impact damage is the most visible failure mode. A rock, a thrown object, a deliberate strike with a hard implement. Tempered glass is designed to minimize laceration risk when it fails by fracturing into small granules rather than large shards. That behavior is appropriate in a passenger vehicle collision. In a transit context, it means the window is gone: the vehicle goes out of service, the panel has to be sourced and installed, and the process repeats the next time an impact event occurs at that stop or route segment.
Abrasion from Cleaning
Abrasion from cleaning is less dramatic but more cumulative. Transit windows are cleaned on a regular schedule using industrial cleaning compounds and abrasive cloths or brushes. The quartz and silica content of dust, road grime, and grit that accumulates on window surfaces is hard enough to scratch both glass and uncoated polycarbonate with repeated wiper and cloth contact. Over months of daily cleaning cycles, haze accumulates. When haze reaches the point where it affects passenger visibility or fails a fleet inspection threshold, the window comes out.
Graffiti and Chemical Exposure
Graffiti and chemical exposure close the loop. Graffiti solvents and removal compounds, including acetone-based and strong alkaline cleaners, attack uncoated surfaces directly. Glass holds up to most cleaning chemicals. Uncoated polycarbonate does not. The solvent resistance of the window surface is not a secondary consideration for transit procurement teams who manage high-vandalism routes. It is a primary specification requirement.
What the Standards Require
FMVSS 217 covers bus emergency exits and window retention and release. It specifies both the conditions under which glazing must remain in place and the conditions under which it must be removable for emergency egress. The window retention requirements under FMVSS 217 define the force thresholds glazing must resist before the panel separates from the vehicle structure. Glazing that shatters completely on impact cannot meet retention requirements in any meaningful sense: there is nothing left to retain.
FRA 49 CFR Part 223 governs safety glazing for locomotives and passenger cars on the general railroad system. The certification requirements in Part 223 Appendix A are specific and demanding. Type I glazing, required for end-facing locations including locomotive windshields and cab windows, must survive a .22 caliber long rifle bullet at 960 feet per second and a cinder block impact at 44 feet per second minimum. Type II glazing for side-facing locations must survive the same ballistic test and a large object impact at 12 feet per second minimum. The witness plate must show no penetration from either the projectile or fragments from the glazing material itself.
Glass does not pass these tests. The ballistic and large object impact thresholds in Part 223 were written around polycarbonate as the material category capable of meeting them. A glazing material that fractures into granules on large object impact cannot simultaneously show no witness plate penetration.
Five Star’s Fusionite CGIII coating grade meets both FRA Part 223 and Part 238 requirements, the latter covering fire and smoke performance under ASTM E162 and E662. For OEMs and agencies procuring rail glazing, this certification matters for two reasons: regulatory compliance and liability traceability in the event of an incident investigation.
What the Abrasion Testing Shows
The primary test for abrasion resistance in transparent plastics is ASTM D1044, the Taber abrasion method. A weighted abrasive wheel runs against the coated surface for a set number of cycles. Haze is measured before and after using the method in ASTM D1003. The result is expressed as percent haze increase. Lower is better. The practical threshold for acceptable optical clarity in transit glazing is typically below 4% haze increase, though individual agency specs vary.
Uncoated polycarbonate fails badly on this test. Its surface hardness is well below glass, and haze accumulates quickly under any sustained abrasive contact. Operators who have specified uncoated polycarbonate on high-cleaning-frequency routes know the result: the windows look worse than glass within a year and come out before their expected service life. The coating is the specification.
Five Star’s Fusionite coating line addresses this with two grades relevant to transit applications:
Fusionite CGII achieves Taber haze below 3% at 500 abrasion cycles per ASTM D1044. Wiper abrasion resistance is below 4% per ISO 5685 and FMVSS 108. CGII carries five-year Florida outdoor weathering data and meets FCA LP-463PB-31-01 for automotive qualification. For bus glazing on routes with high UV exposure and daily cleaning cycles, CGII delivers multi-year service without optical degradation that would trigger replacement.
Fusionite CGIII pushes the specification further. Taber haze is below 2% at 1,000 cycles, twice the abrasion exposure at a tighter haze limit. CGIII is the grade that meets FRA Parts 223 and 238, and it is the appropriate specification for rail glazing, high-vandalism bus routes with aggressive cleaning protocols, and any application where the cleaning frequency or compound aggressiveness exceeds what CGII’s 500-cycle spec is designed for.
The gap between these two grades is not marketing segmentation. It reflects real differences in service environment. A suburban commuter rail window cleaned twice daily with industrial compounds is a different engineering problem than a municipal bus side window cleaned once a day with a standard transit cleaning solution. Specifying the correct grade to the service environment avoids both over-specification costs and premature replacement from under-specification.
The Impact Resistance Advantage Is Not Theoretical
Five Star’s polycarbonate windows for mass transit are rated at impact resistance up to 250 times greater than glass. That figure comes from material testing, not fleet marketing.
The practical consequence is a different failure mode under vandalism impact. When tempered glass takes a sufficient strike, it fails completely. When polycarbonate takes the same strike, it absorbs energy, deforms, and stays in place. The window is not destroyed. The vehicle does not go out of service. The panel may show a deformation or surface mark at the impact site, which is a maintenance item rather than a replacement event.
For agencies managing high-vandalism corridors, the replacement frequency difference between glass and polycarbonate is measurable in fleet maintenance records. The Transit Cooperative Research Program has documented glazing lifecycle cost as a driver of transit maintenance expenditure. The material cost of a polycarbonate window is higher than glass at initial procurement. The total cost over a replacement cycle that accounts for labor, out-of-service time, and materials across repeated glass replacements is where polycarbonate recovers that premium.
Chemical Resistance: The Graffiti Problem
The graffiti removal requirement presents a specific challenge. Effective graffiti removal from a transit window surface requires solvents that are strong enough to dissolve spray paint and marker inks. Those solvents, on uncoated polycarbonate, degrade the surface.
Fusionite coatings provide a chemical barrier that uncoated polycarbonate does not. Five Star tests chemical resistance as part of coating validation, covering fuel, hydraulic fluid, and common cleaning compounds. The coating must hold up to the cleaning protocol the agency actually uses, not a laboratory substitute. For procurement teams writing glazing specifications, requesting chemical resistance test data against the specific compounds in the agency’s cleaning and graffiti removal protocol is a straightforward way to validate coating compatibility before committing to a product.
Fog Resistance on Enclosed Rail Cars
Enclosed rail cars with HVAC systems create a specific glazing problem that impact and abrasion data do not address: interior fogging from temperature differentials between the cold outside surface of the glazing and the warm interior of the car. Morning service on cold-weather rail lines is where this surfaces in practice. Glazing fog on a commuter train is a passenger experience problem. On the operator’s windshield position, it becomes a visibility safety issue.
Fusionite CGAF provides an anti-fog coating validated at more than two minutes fog-free at 60°C under EN-166:2001. For rail procurement specifications that include fog-resistance requirements, CGAF is the relevant grade, and it can be combined with the abrasion and impact properties of the polycarbonate substrate.
Fabrication for Transit Geometries
Transit cab windshields and side windows span a wide range of geometries, from the large flat side panels of a standard transit bus to the compound-curved windshields of modern low-floor rail cars. Five Star’s thermoforming and CNC machining operations produce transit glazing across this full range. Coated polycarbonate sheet is available in panels up to 8 feet by 11 feet, covering the windshield dimensions of most transit bus platforms. Drape forming across five on-site ovens handles compound curves without the optical distortion that forming over tight radii can introduce in flat polycarbonate sheet. CNC machining on 3, 5, and 6-axis equipment handles hole patterns, edge profiles, and cutouts to drawing tolerances. Frit printing applies custom opacity bands directly to the sheet surface before forming, eliminating the separate installation step that secondary-applied films require.
Prototype lead times from geometry data to first article are two weeks. For transit agencies or OEMs in the middle of a glazing specification or fleet upgrade program, that turnaround supports material evaluation without adding to the program schedule.
What to Specify
For transit procurement teams and OEM engineers writing glazing specifications, the relevant specification points for Fusionite-coated polycarbonate are:
Taber abrasion haze, per ASTM D1044, at 500 cycles for CGII and 1,000 cycles for CGIII. Wiper abrasion per ISO 5685 and FMVSS 108. UV weathering per ASTM D7869 xenon arc and five-year Florida outdoor data. Optical clarity per ASTM D1003. Chemical resistance against the agency’s specific cleaning and graffiti removal compounds. FRA Part 223 certification for rail glazing positions. FMVSS 217 retention compliance for bus applications.
Five Star’s engineering team provides test data packages on request. Procurement teams do not have to accept supplier claims on coating performance. The data is available to validate before the specification is written.
