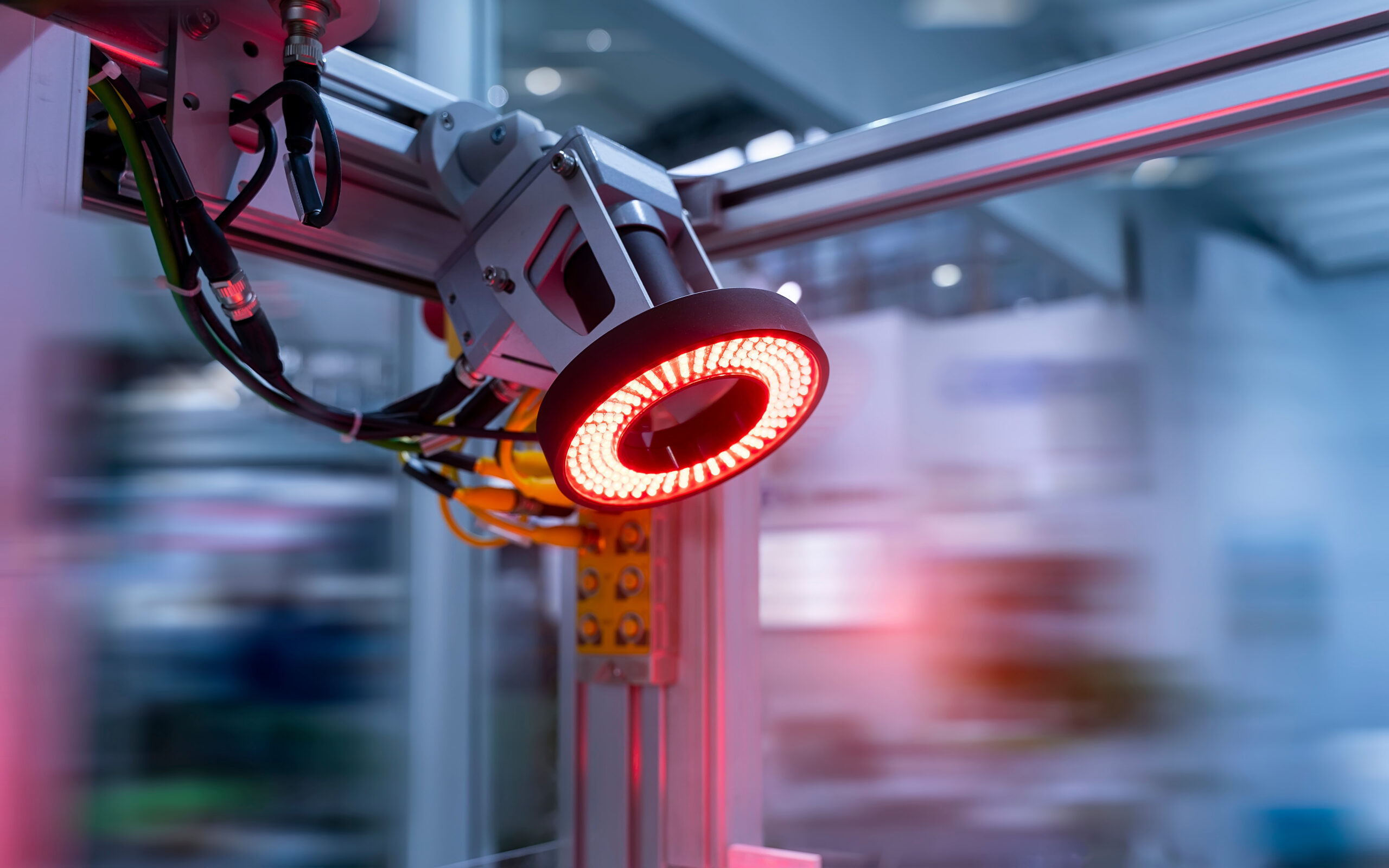

Machine vision systems are precise instruments. The cameras are characterized to tight performance tolerances. The lighting is engineered for the specific inspection task. The algorithms that process image data are tuned to parameters that hold across a defined operating range. When a protective window sits in the optical path between the scene and the sensor, it becomes part of that system. If it introduces haze, surface irregularity, or optical distortion, the camera cannot compensate in software. The window either meets the optical specification or it does not.
The question for systems integrators and machine vision engineers is not whether window clarity matters. It does. The question is what specification to write, what tests to run against it, and what material and coating combination actually holds that specification in a production environment across the service life of the enclosure.
What Machine Vision Cameras Need From Their Windows
Machine vision cameras used in inspection, measurement, and guidance applications are increasingly characterized to standards like EMVA 1288, which provides a standardized method for reporting sensor performance: quantum efficiency, noise characteristics, dynamic range, and sensitivity. That characterization data is collected without a protective window in the optical path. When a window is added to the enclosure, it changes what reaches the sensor.
The optical properties that matter most for machine vision are haze, luminous transmittance, and optical distortion.
Haze is the percentage of transmitted light scattered more than 2.5 degrees from the incident beam. ASTM D1003 is the standard test method. For an inspection system measuring dimensional features of machined parts, haze introduces background scatter that reduces image contrast between the feature being measured and its surroundings. For a surface defect detection system, haze can mask shallow features or produce false positives by introducing scatter at the boundaries of the inspection zone. The practical haze threshold for machine vision windows depends on application and working distance, but the direction is clear: lower is always better. Optical-grade polycarbonate from Five Star’s window production runs below 1% initial haze, a level that places no meaningful constraint on vision system performance at installation.
Luminous transmittance is the fraction of incident light that passes through the window without loss. Standard polycarbonate transmits above 90% across the visible spectrum. For systems working in the near-infrared, including laser triangulation sensors, structured light systems, time-of-flight cameras, and LiDAR, transmission in the 780-1100nm range is the specification that matters. Polycarbonate transmits well through this region, which is one reason it has become the material of choice for protective covers on active illumination camera systems in robotics and automation.
Optical distortion affects dimensional accuracy in measurement applications. A window with surface non-uniformity or thickness variation introduces wavefront errors that shift the apparent position of features in the image. For gauging applications where the machine vision system is doing the measurement, this translates directly into measurement error. This is why enclosure windows for machine vision applications are machined to consistent thickness tolerances rather than cut from stock and installed without verification.
Haze Is the Primary Optical Failure Mode in Service
A window that enters service at below 1% haze will not stay there unless its surface is protected. In a production environment, two processes drive haze accumulation over time: mechanical abrasion from cleaning and contact, and UV degradation of the base material.
Abrasion is the dominant factor in most industrial machine vision installations. Enclosure windows are cleaned periodically to remove dust, coolant mist, cutting fluid, and airborne contamination from the production floor. Each cleaning pass involves surface contact. In environments with metal fines, abrasive dust, or particulate-laden coolant residue, each cleaning pass introduces abrasive material. Uncoated polycarbonate accumulates surface scratches and haze quickly in these conditions. By the time haze is visible to the operator during a routine inspection, it has already been degrading vision system performance for weeks.
UV exposure degrades the bulk optical properties of uncoated polycarbonate over time, yellowing the material and reducing transmittance across the visible and near-UV spectrum. For enclosures in outdoor installations, facilities with high-UV process lighting, or applications near UV curing equipment, UV stabilization of both the base material and the surface coating is a specification requirement, not an option.
The result is a window that passes incoming inspection but fails its optical specification within a production quarter. For a machine vision system where the window specification is part of the process validation record, that is a quality event requiring documented corrective action: window replacement, system recalibration, or both.
The Coating Is the Specification
Five Star’s Fusionite coating line provides the surface protection that optical-grade polycarbonate requires to hold its haze specification across service life. Two grades are relevant for machine vision enclosure windows.
Fusionite CGII is Five Star’s ultra-weatherable hard coat. ASTM D1044 Taber abrasion testing places haze increase below 3% at 500 abrasion cycles. Wiper abrasion resistance is below 4% per ISO 5685 and FMVSS 108. CGII carries five-year Florida outdoor weathering data and meets FCA LP-463PB-31-01 automotive qualification. For machine vision enclosures in controlled indoor environments with standard cleaning protocols (lens paper or microfiber wiping with an appropriate solvent), CGII delivers multi-year service without optical degradation that triggers system recalibration or window replacement.
Fusionite CGIII is the appropriate specification for machine vision enclosures in more aggressive environments: machine tool enclosures with coolant mist and metal particulate, casting or foundry environments with abrasive airborne material, or any installation where cleaning frequency or compound aggressiveness exceeds what CGII’s 500-cycle Taber exposure covers. CGIII achieves Taber haze below 2% at 1,000 cycles, twice the abrasion exposure at a tighter haze limit. CGIII is also the appropriate grade for machine vision systems installed on rail equipment and transit maintenance facilities, as it meets FRA Parts 223 and 238 certification requirements.
The Taber test data is the service life prediction for the window’s optical specification. Specifying an incoming haze level without specifying a coating abrasion performance grade is writing a specification that applies only to the day of installation, not to any point in service after that.
Sealing, IP Ratings, and ESD Requirements
Machine vision enclosures in production environments must exclude the same contamination that would otherwise reach the lens and sensor. Five Star’s robotics and automation enclosure windows are fabricated to meet IP65 and IP67 ingress protection ratings: sealed against dust and low-pressure water jets at IP65 and against temporary submersion at IP67. These ratings apply to the window panel assembly and its interface with the enclosure housing.
In electronics-sensitive environments such as semiconductor fabrication, precision electronics assembly, and pharmaceutical inspection lines, ESD-safe polycarbonate formulations are available. Static-dissipative surface treatments prevent charge buildup on the window face, which matters both for the equipment being inspected and for the camera electronics inside the enclosure.
Flame-retardant polycarbonate grades meeting UL 94 V-0 are available for installations where fire rating is part of the facility specification or machine design requirement. Automotive OEM facilities, food and beverage production lines, and facilities operating under NEC electrical codes with specific area classification requirements often specify flame-retardant grades for vision system enclosures as a matter of facility standard rather than application engineering.
Anti-fog coating is available for enclosures subject to temperature cycling: outdoor installations, cold storage inspection lines, and equipment that moves between temperature zones within a facility. Interior fogging on a camera window during a thermal transition is a production stoppage that cannot be resolved in software.
Fabrication for Machine Vision Enclosures
The optical requirements for machine vision windows make fabrication consistency more critical than for general industrial glazing. A window panel that varies in thickness across its aperture, or that carries a localized surface artifact from a forming operation, produces repeatable image errors that show up as measurement bias. These errors are difficult to distinguish from process variation during system qualification.
Five Star’s CNC machining operations produce window panels and enclosure components to ±0.015″ tolerances on 3, 5, and 6-axis equipment. Precision-machined mounting surfaces ensure consistent seating geometry and eliminate tilt-induced optical path error. Panels are machined from optical-grade polycarbonate sheet stock to uniform thickness across the aperture, rather than thermoformed from flat stock in ways that introduce thickness variation in the formed zone.
For enclosures requiring formed window geometry, including curved panels for wide-angle coverage, angled windows to eliminate specular reflections from the illumination source, and contoured housings that direct purge air across the camera window, Five Star’s thermoforming operations accommodate panel sizes up to 8 feet by 11 feet. For curved window applications, the forming process is managed to minimize thickness variation in the optical zone.
Assembly integration is available for complete sealed enclosure production: precision-machined frame components, gasket seating, and hardware installation to the IP rating of the design. Prototype lead times from DXF or STEP geometry data to first article run two weeks.
What to Specify
For machine vision engineers and systems integrators writing protective window specifications for camera enclosures:
Initial haze per ASTM D1003, measured on the coated panel before installation. Optical-grade polycarbonate from Five Star’s production runs below 1%. Luminous transmittance above 90% across the visible spectrum, and transmission characterization in the near-IR range for systems using active illumination above 780nm.
Coating abrasion performance per ASTM D1044 Taber test: 500 cycles for Fusionite CGII, 1,000 cycles for Fusionite CGIII, with haze increase within the grade specification. This is the life prediction for the window’s optical performance in the service environment. Specify CGII for controlled indoor environments with standard cleaning protocols; specify CGIII for machine tool environments, high-particulate facilities, or high cleaning frequency.
Thickness tolerance and surface flatness appropriate to the optical path length and allowable wavefront error for the application. The tighter the measurement tolerances in the vision system, the tighter the window specification needs to be.
IP rating for the sealed assembly, ESD-safe or flame-retardant grade where facility or machine specifications require, and UV stabilization for outdoor or UV-exposed installations.
Five Star’s engineering team provides Fusionite test data packages on request. Procurement engineers and systems integrators do not have to accept supplier claims on coating performance. The ASTM test data is available to validate against the specification before committing to a window source.
